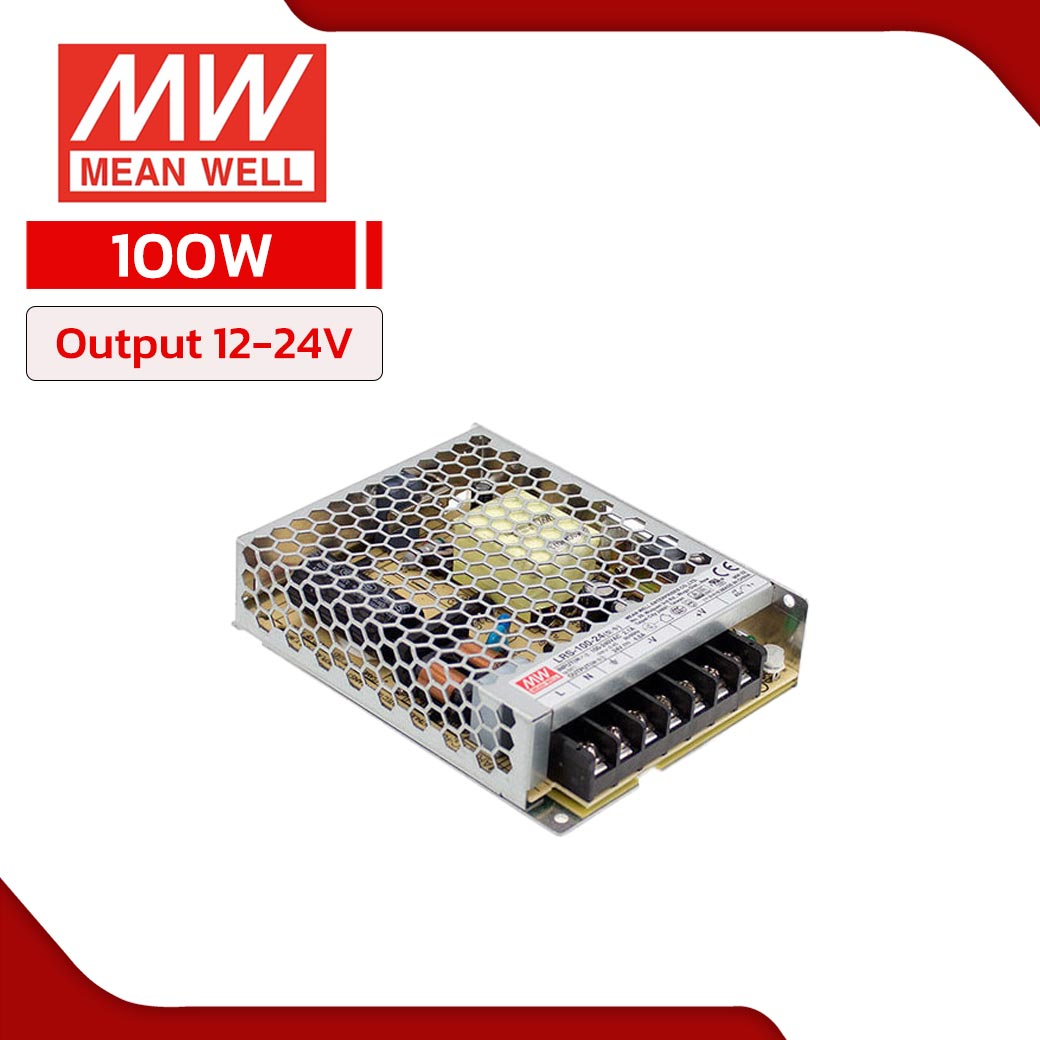

พาวเวอร์ซัพพลาย 100W MEANWELL LRS-100

รายละเอียด

MODEL LRS-100-12V / LRS-100-24V
AC input voltage range 85~264VAC ; 120~370VDC
AC inrush current (max.) Cold start, 50A at 230VAC
DC adjustment range ±10% by potentiometer
Overload protection Range : 110%~150%
Type : Hiccup mode, auto-recovery
Over voltage protection Range : 115%~135% rated output voltage
Type : Shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 4kVAC, I/P-FG: 2kVAC, O/P-FG: 1.25kVAC, 1 minute
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL62368-1,BS EN/EN62368-1,BS EN/EN61558-1, EN61558-2-16, BS EN/EN60335-1, CCC GB4943, BIS IS13252,
BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1 KC K60950-1(12/24V only)approved
EMC standards BS EN/EN55032 class B, EN55014, EN61000-3-2, 3, EN61000-4,2,3,4,5,6,8,11 ; GB9254 ; CNS13438
Connection 7P/9.5mm pitch terminal block
Dimension (LxWxH) 129x 97x 30 mm.
